Universal measuring device with a frequency range of 40-2250 MHz for Android devices. Super live spectrum, a wide range of scales, tuning of any antennas and many applications! It is not just a device for setting satellite and terrestrial TV. This is much more!

Real-time Spectrum Analyzer
Powerful Signal Meter and Analyzer
satfinder
installation of satellite and terrestrial television, and internet via satellite
For the TV/FM/Radio/Air/Marine/Ham/etc signals
Anything between 40…2250 MHz!
For TV/Radio enthusiasts, Radio Hams, Sat/Cable TV Installers, RC Hobbyists
installation and maintenance of cellular systems, 3G / 4G / LTE antennas and amplifiers
Bug detection, Antennae Installation, EMF-compatibility issues… whatever!
configuration and maintenance of various RF devices (from routers to radio controlled gates)
Are there harmful RF-signals in your house?

General Specifications:

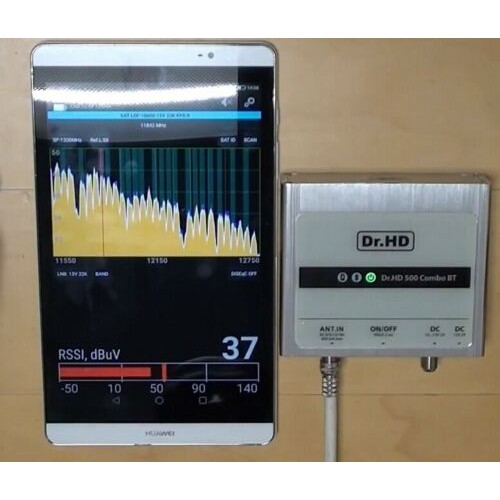

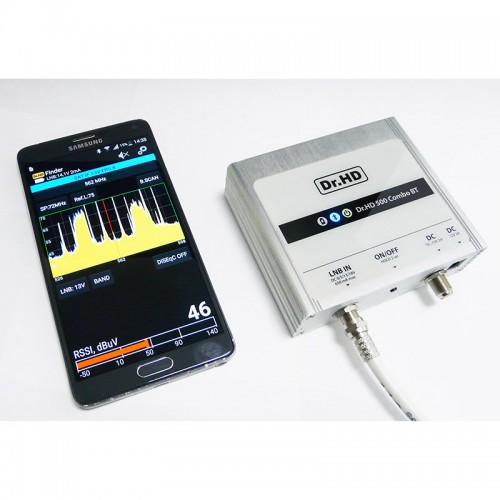

Fast Spectrum analyzer (real-time)
Freq. range1: 250-2250 MHz
Freq. range2: 40-1000 MHz
View Satellite, Terrestrial and Cable TV signals
Full VHF/UHF/FM/DAB/DVB spectrum coverage
Marine band + Air band spectrum
Also 3G/4G/GSM/PCS/LTE/similar bands spectrum
Spectrum of 433/315/868 MHz RF-devices
View Radio HAM bands, GMRS/FRS, amateur/DX radio + some radar spectrum, etc
Everything that’s needed for Sat TV DVB-S/S2, T/T2 installation: spectrum, Sat ID, signal measurement, Services scanning

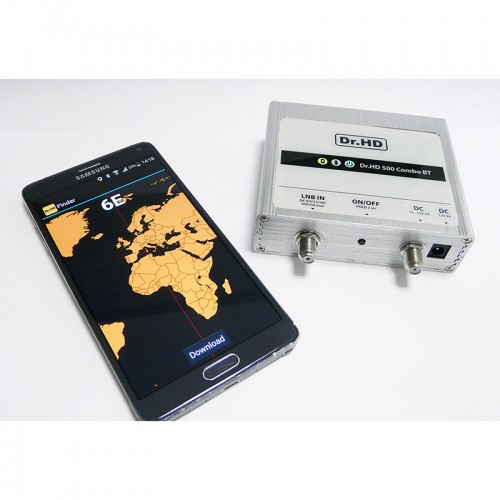

Sat ID function - automatic determination of the orbital position from digital data from a digital stream for the fastest and efficient operation
Good for VSAT installations
Proof of Perfomance reports
Blind satellite identification (SAT ID!!!)
Hundreds other uses
Wide range of spectrum modes (min hold, max hold, average, transparent)
Span: 2000 MHz-27 MHz
Resolution: 8 MHz-100 KHz
Narrow band display
Pro-grade signal analyzer
Link Margin display (Sat and Terr.TV)

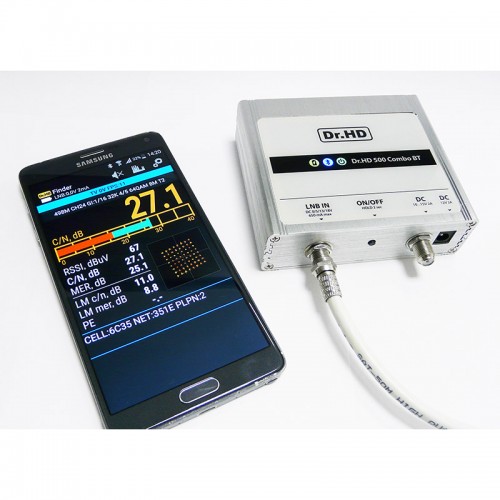

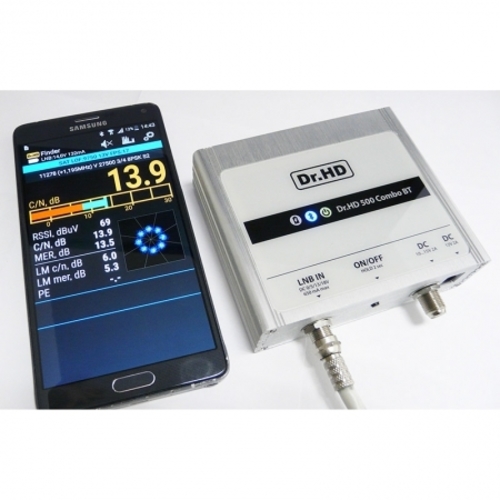

RSSI, C/N, MER, BER, PE display

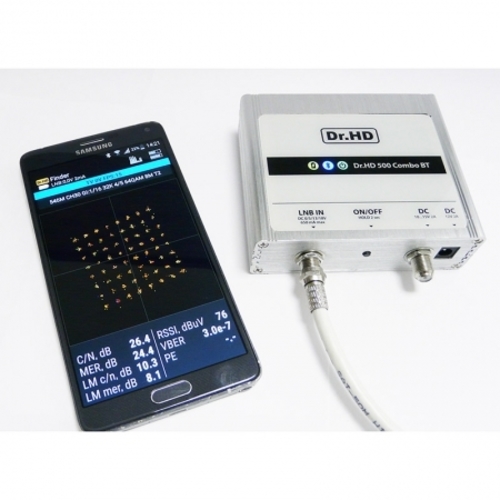

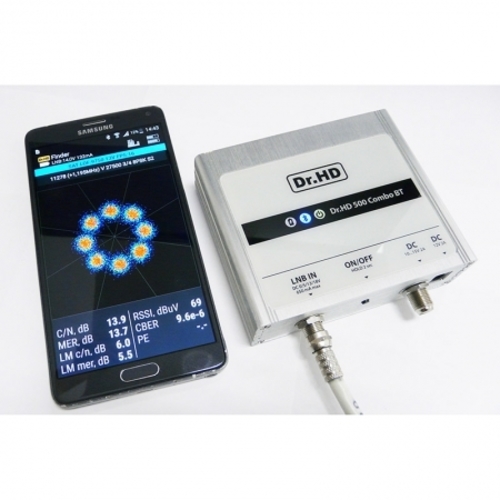

Constellation display
Cross-polarization mapping
NIT/SDT analyzer
Sound indication of signal reception
Services/channels scanner (Sat and Terr.)
DiSEqC control (Sat)
Antenna voltage and current Amp metering
Online transponders / satellites / providers list update
online software update
DVB-C and 3G / 4G / GSM / PCS / LTE - only spectrum!
Cable power with overload protection: 5V/300mA, 13/18V 750mA
Palm-size
Bluetooth to communicate with Android devices
Rechargeable battery

* Android 4.4 or later smartphone required

technical Specification

Tuner input	Connector for a cable from a dish	IEC169-24, female
	Frequency range	45MHz ~ 2150MHz (500ComboBT)
	Input signal level range	35dBuV ~ 130dBuV (Satellite / 3G mode) 10dBuV ~ 130dBuV (TV mode)
	Antenna Power (ANT.IN)	Satellite mode: DC 0/13 / 18V 650 max TV mode: DC 0/5 / 13V 200mA max
	Switch converter	22KHz
	DiSEqC	Compatibility with versions 1.0 / 1.1 (USALS, DiSEqC 1.2, Unicable, DSCC - optional)
Demodulator	Demodulator	DVB-S QPSK, DVB-S2 8PSK / APSK16 / APSK32
Demodulator	Flow rate	1 ~ 45M Character / Sec
Power supply	Power consumption	12W max
	Power supply voltage	100V ~ 250V
	Mains voltage frequency	50Hz ~ 60Hz
	Battery	Lithium-Ion built-in (8.4V), 2 cells with capacity * 3400mA / h
	Battery life	~ 2 .... 7 hours, depends on the mode of operation and the load connected to the outputs

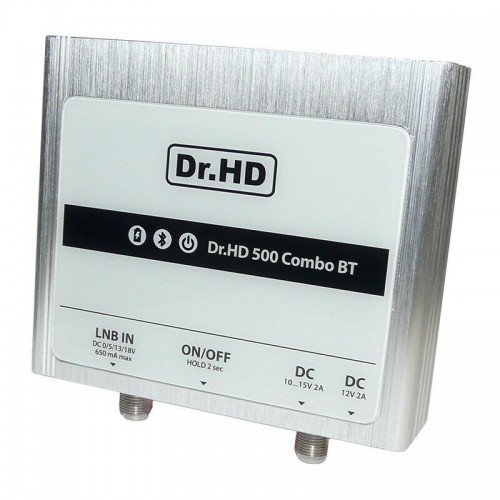

Rear connectors	ON / OFF	Battery switch
	Digital tuner input	IEC169-24
	Power DC (2pc)	From the power adapter 12V 2A (12W min) (charging and operation from DC sources 10-15V is allowed)
Size and weight	Dimensions (without connectors)	105x30x90 mm
Size and weight	STB weight	~ 0.3 kg
